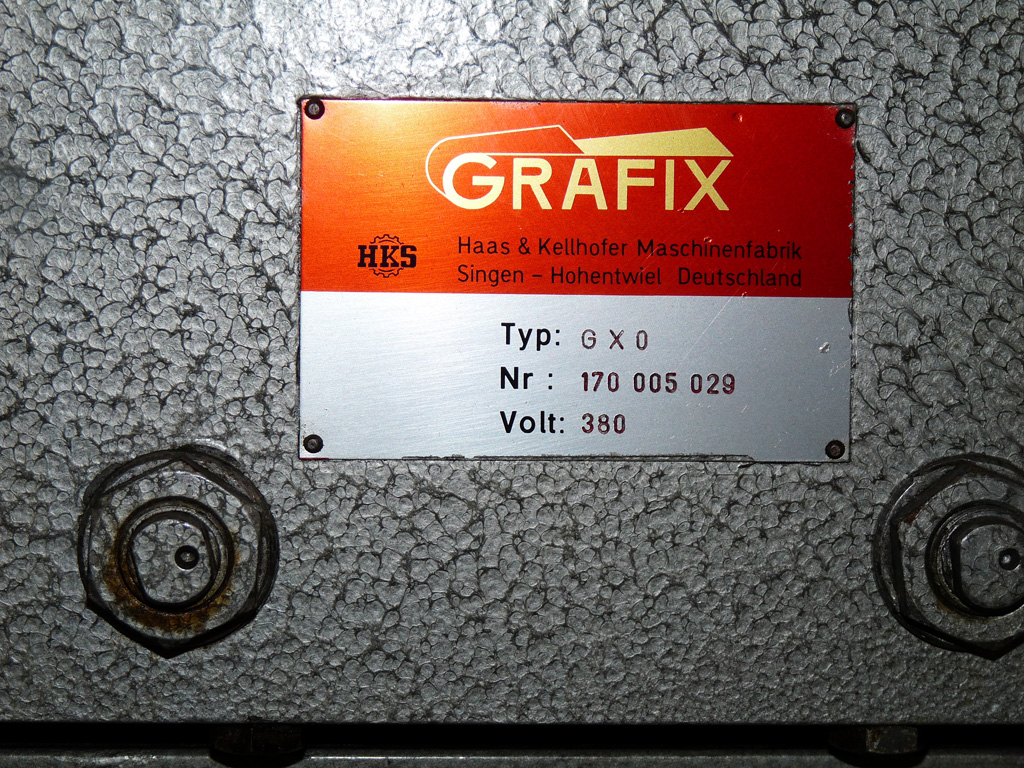

Grafix presses were made circa 1962–1970 by Haas & Kellhofer Maschinenfabrik, Singen-Hohentwiel, Germany. Initially, the company was contracted to build presses for FAG, which then did not have a factory. The agreement ended when FAG moved press production in-house to their new plant in Avenches, Switzerland. Subsequently, Haas & Kellhofer created their own branded machines in five sizes, most of which had either a fixed or adjustable bed or a power carriage.
The GX 4 AN was one of the largest, non-custom proof presses ever made and is comparable to the German-made Korrex Hamburg Kraft (power carriage press).
Model | Paper Size | Bed Size | Floor Space | Wt. |
---|---|---|---|---|
GX 0 AN | 390 × 530 mm 0 x 530m390m | 390 × 510 mm | 900 × 2000 mm 0 x 925 mm | 470 kg |
GX 1 AN | 400 × 580 mm 0 x 530m390m | 400 × 560 mm | 975 × 2150 mm | 650 kg |
GX 1 AV | 400 × 580 mm 0 x 530m390m | 400 × 560 mm | 975 × 2150 mm | 800 kg |
GX 2 AN | 520 × 740 mm | 520 × 720 mm | 2710 × 1200 mm | 1250 kg |
GX 2 AV | 1450 kg | |||
GX 3 AN | 840 × 680 mm | 840 × 640 mm | 2500 × 1415 mm | 1800 kg |
GX 3 AV | 2 2050 kg | |||
GX 4 ANM | 1140 × 890 mm mm | 1140 × 860 mm | 3500 × 1800 mm | 3100 kg |
