This press recently got a rag stuck between the drum sprocket and the chain. After removing the rag and reconnecting the chain, I’m finding that the chain is alternating in a tight and loose pattern and dragging on the pedal mechanism. I’m concerned that the sprockets are misaligned or bent. I did try changing the mounting position of the motor, but no position fixed the issue.
Thank you for your insight.
Thank you. I’m familiar with the master link. I’ll dig through the similar posts for some answers. I’m sure someone else has had this issue and required detailed info to do it themselves.

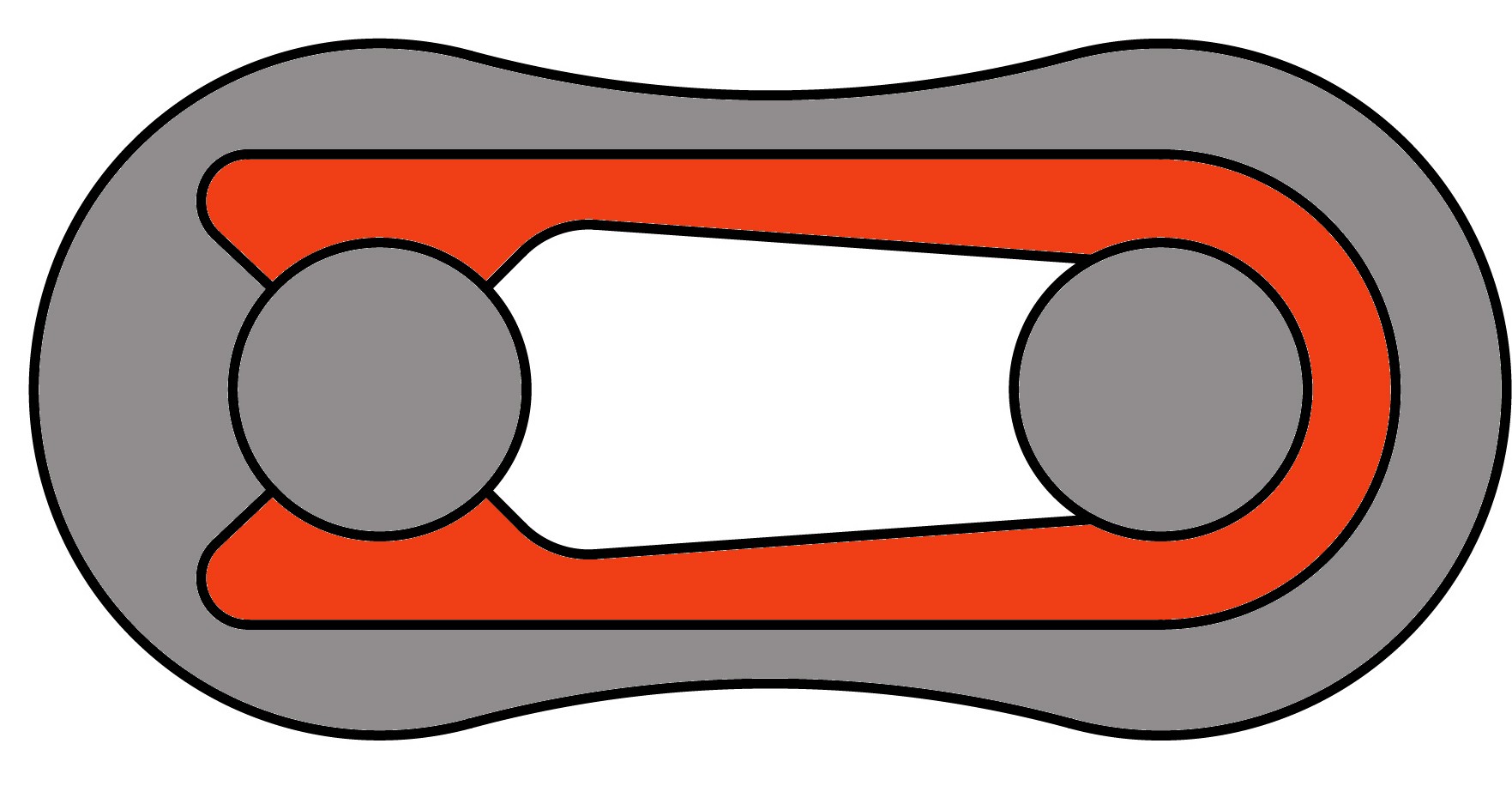

The chain has a master link on the side. You can pop it out with a screwdriver.
Disassembly instructions for the chain/motor would be very helpful, if they exist. In the meanwhile I’ll sift through all the great posts and try and piece together something. thank you!
If there are no slots then you’ll have to bring the motor outward with longer bolts, but it’s better to add a new mounting bracket with slots or replace the chain.
Hello, I’m having the same issue with a slack chain. Unable to locate the spot to lower the motor and tighten the chain. Mine seems to be bolted in one place.
Attached is a photo of the drum shaft.
Lowering the motor did help take up some slack, but caused the chain to hit the pedal mechanism (photo attached of motor in lower position). The sprockets have no play. When the motor is in a higher position there is enough slack to remove a link (though I have not shortened the chain yet). When I am back to the studio next week I’ll post the photo of the drum shaft.
So you lowered the motor, and there’s still slack?
Have you checked that the sprocket is tight on the ink drum and the motor?
You may be able to remove a link in the chain
and raise the motor.
There could also be new damage to the ink drum shaft or the bushings, which we installed on my visit in March 2023. The link is below.
The drum should be level with the width of the bed.
Please send a photo of the non-operators side where the drum shaft passes through the bed casting. See the last photo in this post: https://vandercookpress.info/universal-i-ink-drum-repair/
